WSVP 2120, 2130, 2150

WSVP2130 01

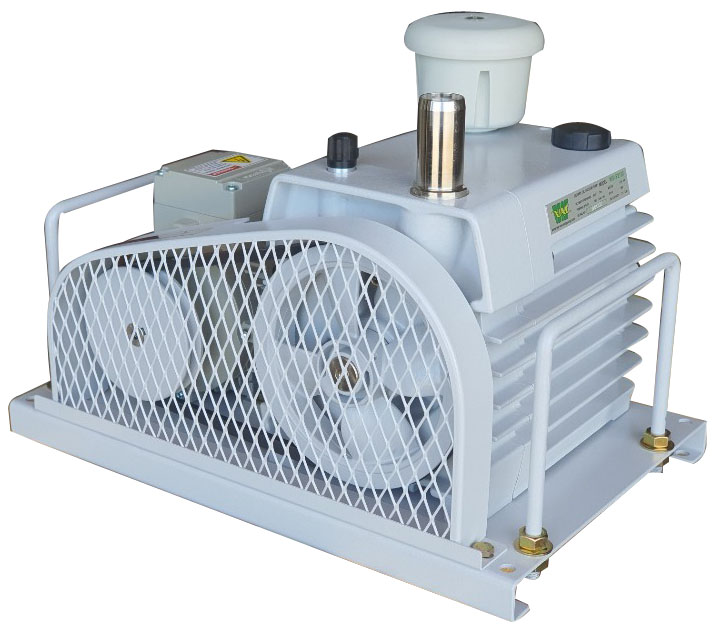

WSVP2130 01
WSVP2130 02

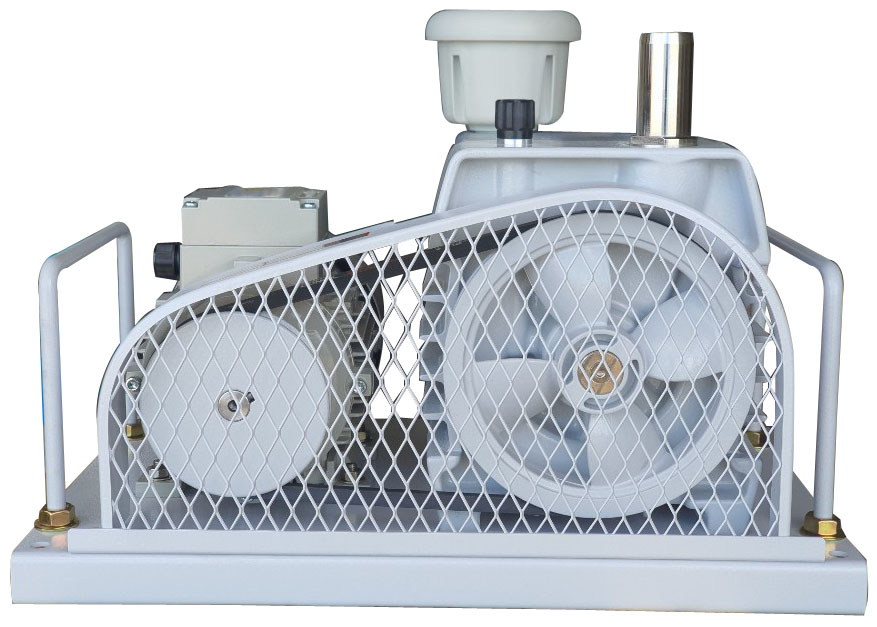

WSVP2130 03

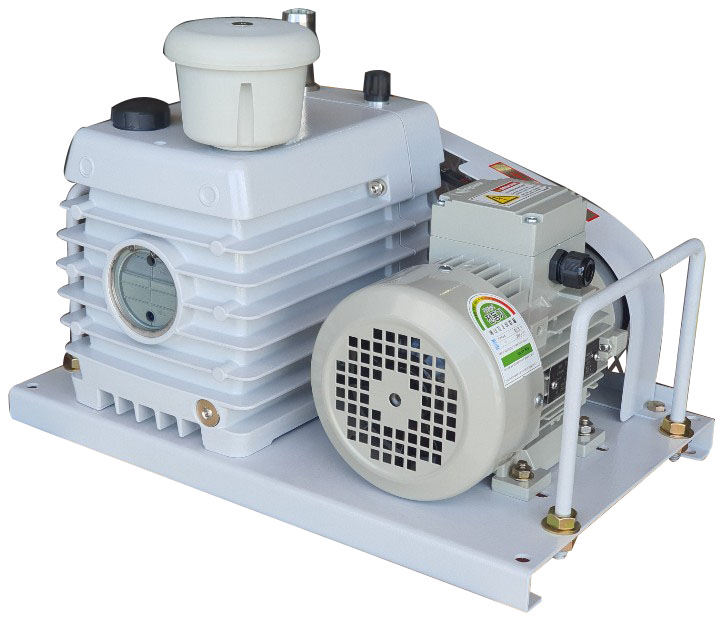

WSVP2130 04

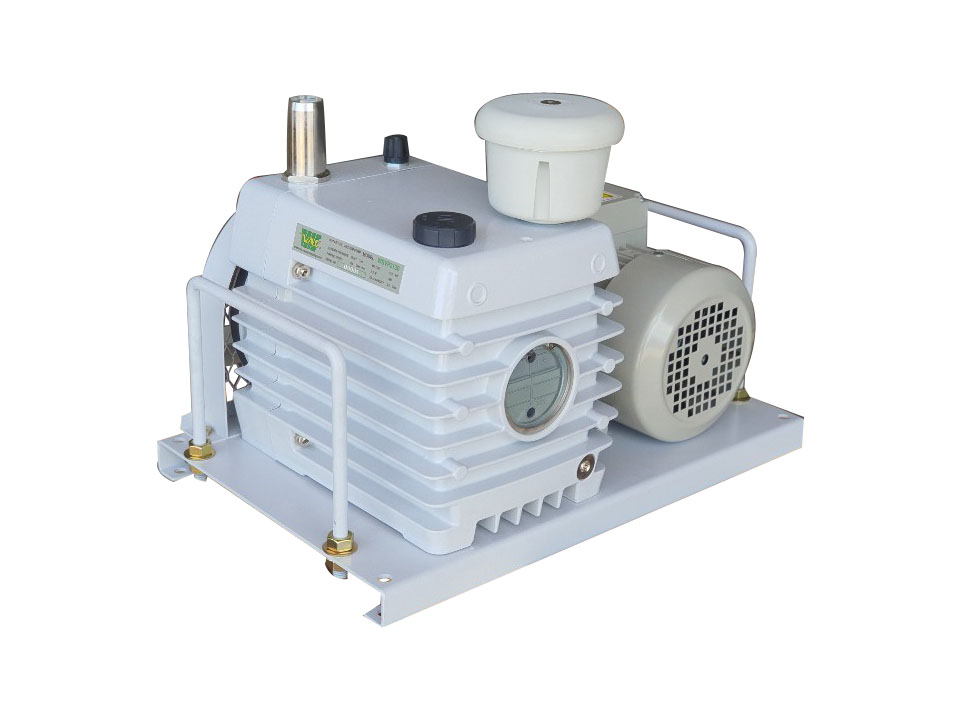

WSVP2130 05

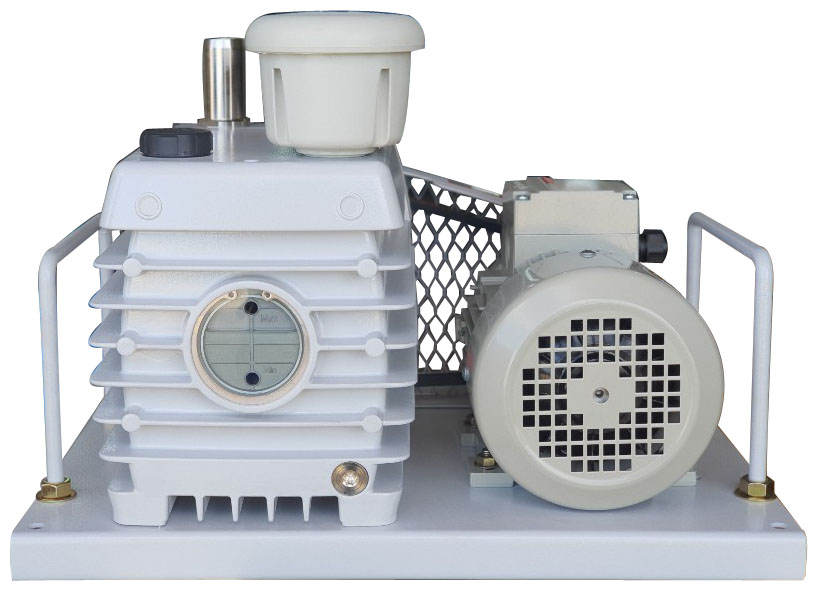

WSVP2130 06

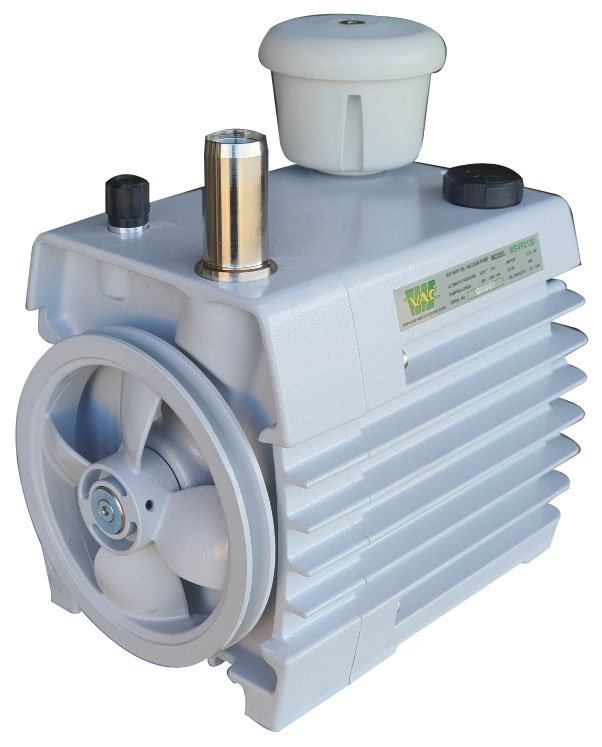

WSVP2130 07
WSVP2130 01 WSVP2130 02 WSVP2130 03 WSVP2130 04 WSVP2130 05 WSVP2130 06 WSVP2130 07

Design Features

  • Excellent ultimate vacuum and pumping speed
  • Convenient gas ballast valve control
  • Simple compact design
  • Low vibration level and low noise level
  • Easy maintenance and repairing
  • Oil mist trap reduces oil consumption and prevention pollution

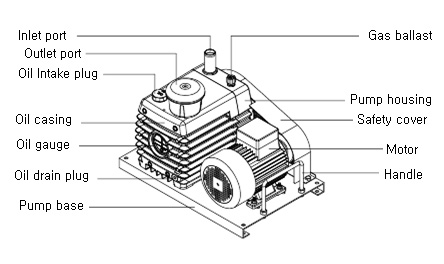

External Pump Sketch

wsvp_dim

Technical Data

Description Unit WSVP2120 WSVP2130 WSVP2150
Displacement Speed m3/h 12 18 30
L/min 200 300 500
UltimatePressure With gas ballast Torr 5×10-2 5×10-2 5×10-2
Without gas ballast 5×10-4 5×10-4 5×10-4
Inlet Port mm Ø32 Ø32 Ø46
Outlet Port mm M35X1.5 M35X1.5 M50X1.5
Motor Power kW 0.4 0.75 0.75
Rotational Speed of Pump R.P.M R.P.M 900 900 900
Oil Filling Liter 1.8 2.0 4.5
V-Belt Size/Q’ty A34″ / 1 A34″ / 1 A41″ / 2
Weight(including motor) kg 23(37) 26(43) 46(71)

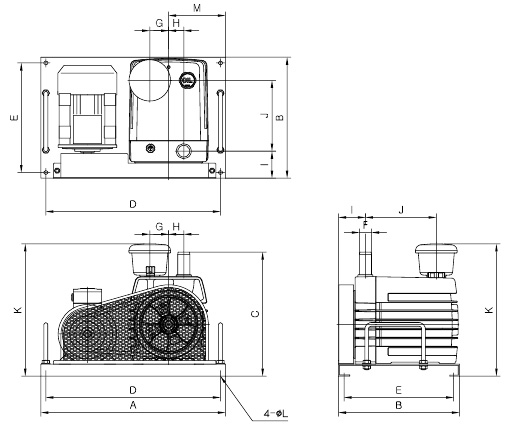

Outside Dimension

wsvp_outside
MODEL A B C D E F G H I J K L M
WSVP2120 488 285 329 462 255 Ø32 50 40 71.5 157.5 350 Ø11 150
WSVP2130 488 320 329 462 290 Ø32 50 40 71.5 187.5 385 Ø11 150
WSVP2150 580 395 417 550 365 Ø46 50 40 79.5 230 454 Ø11 190

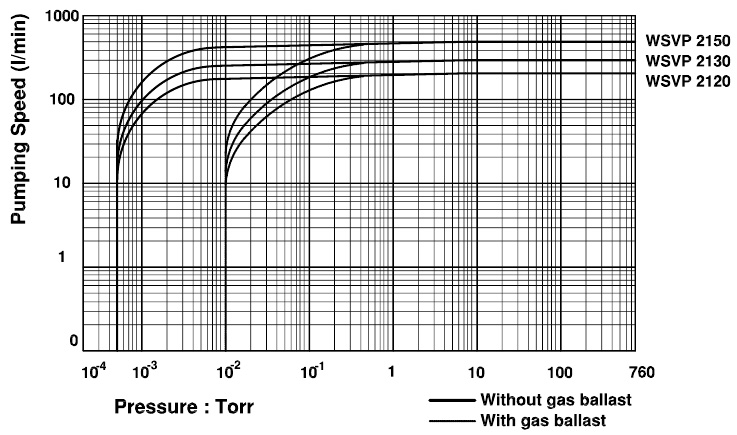

Pumping Speed Curve

wsvp_speedcurve
