MVP Large Series(144~324m3/h)

Gas Ballast Vacuum Pump

Design Operation Principle

  • MVP Series is two-stage oil sealed rotary vane vacuum pump. It is new concept out of conventional design to satisfy customer’s needs.
  • The structure of the pump It consists of top cover, oil casing, motor housing, pump module. It occupies oil anti-suckback valve and gas ballast for protecting pump.
  • Operating Principle The pump and motor are connected by flexible coupling. As the rotor rotates two vanes, placed in rotor vane groove, turn making contact with the internal surface of the cylinder due to centrifugal force.
    The inhaled gas is trapped between two vanes as the rotating vane passes through the inlet passage and this trapped gas is compressed as it rotates toward exhaust valve and eventually exhaust through valve. The vacuum oil is supplied to the moving parts for lubrication and tight sealing.
Big MVP 01
Big MVP 01
Big MVP 02
Big MVP 03
Big MVP 04
Big MVP 01 Big MVP 02 Big MVP 03 Big MVP 04

Design Features

  1. Excellent ultimate vacuum and pumping speed.
  2. Improved anti-suckback system to protect the pump in the event of sudden stop.
  3. International standard flange.
  4. Low noise level and low vibration level.
  5. Constant pressure oil circulating system.
  6. Convenient gas ballast valve control.
  7. Simple repairing and maintenance.
  8. Convenient cooling system by air-cooled and water-cooled (MVP-324)

External Pump Sketch

Small-Series_08

Technical Data

Description Unit MVP 144 MVP 216 MVP 324
Displacement Speed 60Hz m3/h 144 216 324
L/min 2400 3600 5400
50Hz m3/h 120 180 270
L/min 2000 3000 4500
Ultimate Pressure With gas ballast torr 5×10-3
Without gas ballast 5×10-4
Inlet Port ISO 63
Outlet Port ISO 40
Motor Power kW 3.7 5.5 7.5
Rotational speed of Pump 60Hz R.P.M 1750
50Hz 1450
Oil Filling Liter 11 16 17
Cooling water(less 20°C) L/min 6
Weight kg 172 290 358

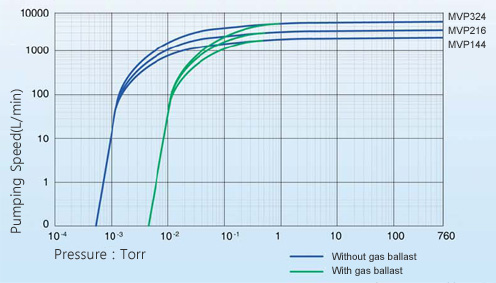

Pumping Speed Curve

Small-Series_09

Outside Dimension (Model : MVP144, MVP216, MVP324)

Small-Series_10

(unit:mm)

Model A B C D E F G H I J K S L
MVP144 320 230 501 40 65 414 193 175 465 348 740 Ø14 974
MVP216 400 305 575 58 75 490 195 203 528 378 805 Ø18 1101
MVP324 400 305 645 58 75 560 203 240 598 423 895 Ø18 1179

Dimensions of ISO flange

Small-Series_11
(unit:mm)
Standard a b n d
ISO40 100 80 4 M8
ISO63 130 110 4 M8
