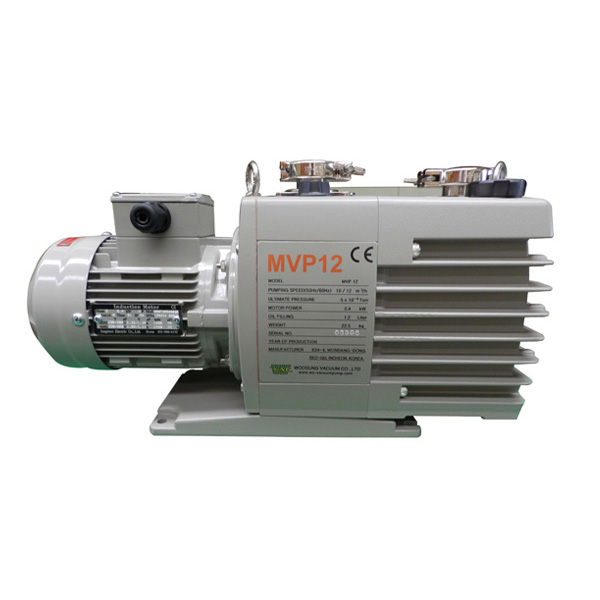

MVP Small Series (12m3/h)
Design Features
- Excellent ultimate vacuum and pumping speed by suing high performance new materials.
- Improved oil anti-suckback system to protect the vacuum system in the event of sudden stop.
- Occupying international standard clamp and flange at inlet and outlet port.
- Low noise and vibration.
- Occupying strong and constant pressured oil circulating system to protect the pump.
- Occupying convenient gas ballast valve control enabling open and shut-down of gas ballast valve easily while operating.
- Simple maintenance and oil replacement.
- Simple repair without special tools.
MVP Small Series (12m3/h)
External Pump Sketch
Simplified Pump Structure Sketch
Technical Data
| Description | Unit | MVP12 | ||
| Displacement speed | 60HZ | m3/h | 12 | |
| L/min | 200 | |||
| 50HZ | m3/h | 10 | ||
| L/min | 170 | |||
| Ultimate pressure | Gas ballast C | torr | 5 x 10-4 | |
| Gas ballast I | 5 x 10-3 | |||
| Gas ballast II | 5 x 10-2 | |||
| Water vapour tolerance | torr | 40 | ||
| Oil filling | L | 1.2 | ||
| Inlet port | DN | 25KF | ||
| Outlet port | DN | 25KF | ||
| Motor power | kW | 0.4 | ||
| Rotational speed of pump | 60Hz | R.P.M | 1750 | |
| 50Hz | R.P.M | 1450 | ||
| Noise level(without gas ballast) | dB | 50 | ||
| Weight | kg | 22.5 | ||
Pumping Speed Curve
Outside Dimension (Model : MVP 6, 12, 24, 36)
(unit:mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | N | S | M | L |
| MVP12 | 170 | 120 | 261 | 24 | 40 | 247 | 45 | 155 | 253 | 94 | 240 | 269 | Ø9 | 210 | 479 |
Outside Dimension Model : MVP60, MVP90
(unit:mm)
| Model | A | B | C | D | E | F | G | H | I | J | K | N | S | M | L |
| MVP60 | 250 | 185 | 387 | 30 | 50 | 368 | 80 | 255 | 370 | 305 | 550 | 428 | Ø14 | 281 | 709 |
