MVP144 {144m3/h(2400L/min)-60HZ, 120m3/h(2000L/min)-50HZ}
Design Features
- Excellent ultimate vacuum and pumping speed.
- Improved anti-suckback system to protect the pump in the event of sudden stop.
- International standard flange.
- Low noise level and low vibration level.
- Constant pressure oil circulating system.
- Convenient gas ballast valve control.
- Simple repairing and maintenance.
- Convenient cooling system by air-cooled and water-cooled (MVP-324)
Design Operation Principle
- MVP Series is two-stage oil sealed rotary vane vacuum pump. It is new concept out of conventional design to satisfy customer’s needs.
- The structure of the pump
It consists of pump housing, oil casing, motor housing, pump base and pump module. It occupies oil anti-suckback valve and gas ballast for protecting pump and vacuum system. - Operating Principle
The pump and motor are connected by flexible coupling. As the rotor rotates two vanes, placed in rotor vane groove, turn making contact with the internal surface of the cylinder due to centrifugal force.
The inhaled gas is trapped between two vanes as the rotating vane passes through the inlet passage and this trapped gas is compressed as it rotates toward exhaust valve and eventually exhaust through valve. The vacuum oil is supplied to the moving parts for lubrication and tight sealing.
Technical Data
Description | Unit | MVP 144 | |
Displacement Speed | 60Hz | m3/h | 144 |
L/min | 2400 | ||
50Hz | m3/h | 120 | |
L/min | 2000 | ||
Ultimate Pressure | With gas ballast | torr | 5×10-3 |
Without gas ballast | 5×10-4 | ||
Inlet Port | ISO 63 | ||
Outlet Port | ISO 40 | ||
Motor Power | kW | 3.7 | |
Rotational speed of Pump | 60Hz | R.P.M | 1750 |
50Hz | 1450 | ||
Oil Filling | Liter | 11 | |
Cooling water(less 20°C) | L/min | ||
Weight | kg | 172 |

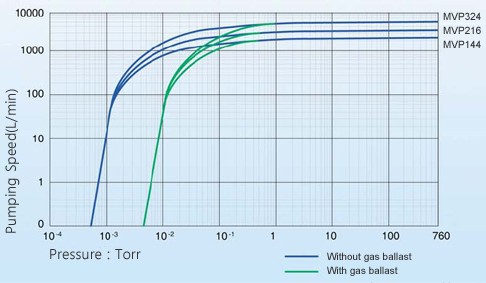

Pumping Speed Curve
Warning: imagejpeg() [function.imagejpeg]: Unable to open '/home1/wspump/wp/wp-content/uploads/2015/08/Small-Series_09-486x283.jpg' for writing: Permission denied in /home1/wspump/wp/wp-includes/class-wp-image-editor.php on line 419
External Pump Sketch

Outside Dimension

(unit:mm)
Model | A | B | C | D | E | F | G | H | I | J | K | S | L |
MVP144 | 320 | 230 | 501 | 40 | 65 | 414 | 193 | 175 | 465 | 348 | 740 | Ø14 | 974 |
Dimensions of ISO flange

(unit:mm)
Standard | a | b | n | d |
ISO40 | 100 | 80 | 4 | M8 |
ISO63 | 130 | 110 | 4 | M8 |
